3 Layer Geocomposite Clay Liner 5000g Weight Bentonite With Nonwoven Geotextile

Brand Name : HT

Model Number : HUATAO-GCL-001

Certification : ISO9000

Place of Origin : CHINA

MOQ : 5000 m2 per order

Price : Price accept negotiation

Payment Terms : T/T, L/C, Western Union

Delivery Time : 5-8 work days

Packaging Details : Paper or iron tube with waterproof film

Material : geotextile, bentonite

Type : Geosynthetic Clay Liner

Bentonite mass weight : 5000GSM

WIDTH : 2-6m

name : Geosynthetic Clay Liner of 3 layer

Contact Now

Geosynthetic Clay Liner of 3 layer 5000g weight Bentonite with Geotextile and nonwoven geotextile

Geosynthetic clay liners (GCLs) introduction:

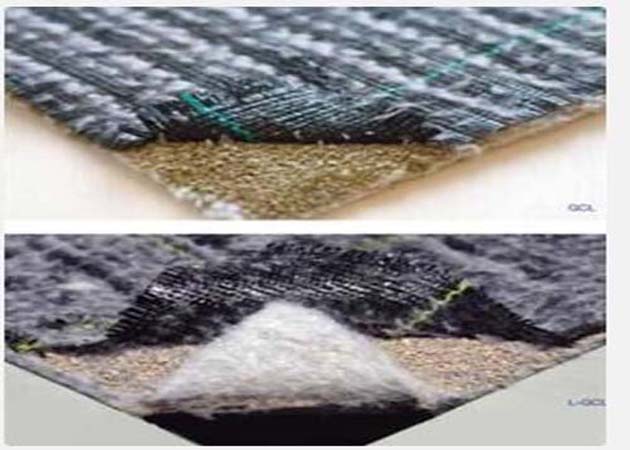

Geosynthetic clay liners (GCLs) are high performance needle punched environmental reinforced composites which combine two durable geotextile outer layers with a uniform core of natural sodium bentonite clay to form a hydraulic barrier. Fibers from the non-woven geotextile are needle punched through the layer of bentonite and incorporated into the other geotextile (either a woven or non-woven).when hydrated under a confining load, the bentonite swells to form a low permeability clay layer with the equivalent hydraulic protection of several feet of compacted clay.

Geosynthetic clay liners (GCLs) Technical Parameter

Inspection Item	Testing Procedure	Technical Index
Bentonite mass for unit area	ASTMD5993	≥5.5kg/m2
Expansion coefficient	ASTMD5890	≥ 25mL/2g
Low temperature ductility	ASTMD5898	No impact at -35°C
Thickness	ASTMD5892	≥6.4mm
Tensile strength	ASTMD4632	≥540N
Peel strength of concrete face	ASTMD4632	≥3.0 KN/ m2
Peel strength	ASTMD4632	≥68N
Indicated flow	ASTMD5887	≤1 × 10-8m3/m2/sec
Hydrostatic pressure resistance	ASTMD5888	≥70
Permeability	ASTMD5887	≤5 × 10-12cm/sec
Extension rate	ASTMD5896	≥20
Puncture strength	ASTMD5894	≥635N

Geosynthetic clay liners (GCLs) Features:
1. Improved leakage performance
2. Permanent waterproof performance
3. Simple construction and short time limit for a project.

Geosynthetic clay liners (GCLs) Application:

1)Improved leakage performance

2)Permanent waterproof performance

3)Simple construction and short time limit for project

3 Layer Geocomposite Clay Liner 5000g Weight Bentonite With Nonwoven Geotextile
